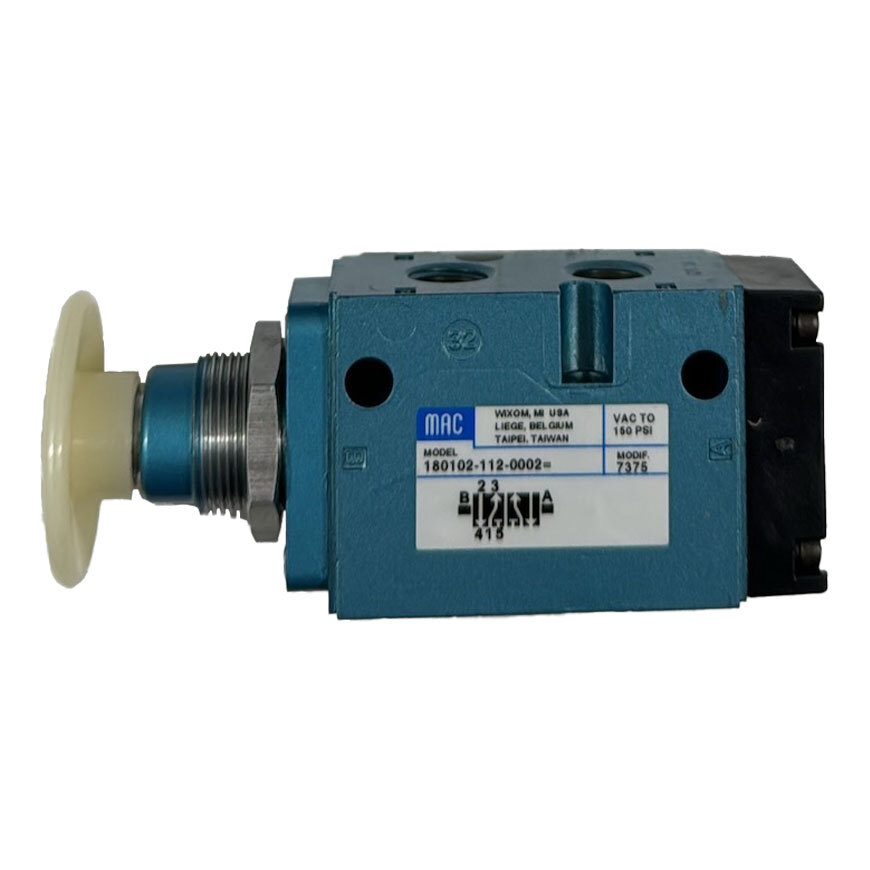

MAC 4-Way Solenoid Valve MAC 4-Way Solenoid Valve
MAC
- KTP #:
- 13010551
- MPN:
- 180102-112-0002
- Cross Reference Number:
- P105601, P105809
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $190.22
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| Functions | Manually-actuated spool valve |
| Valve Function | 5/2-way, 5-ports 2-positions, bistable |
| Flow | Cv 1.4 |
| Pressure | Vacuum + 200psi pressure range |
| Connection Type | 1/4" NPTF threaded female pneumatic ports |
| Mounting mode | Individual in-line installation |
| Dimensions | H50mm x W30mm x D80mm |
| Ambient Air Temperature for Operation | -18 to +50°C |
- White palm push-pull operator (side B; for pnl. mounting)
single pressure valve - No lubrication required (if used select a medium aniline point lubricant between 180°F and 210°F)
- Spool valve
- Compressed air or inert gases or vacuum as input medium
- Short stroke with high flow.
- Powerful return force.
- Bonded spool with minimum friction and shifting
- A glass-like finished bore.
- Wiping effect eliminates sticking.
- Long service life.
| MAC | 180102-112-0002 |
| Other | P105601, P105809 |
