ContiTech Air Spring 66522 ContiTech Air Spring 66522
ContiTech
- KTP #:
- 15800157
- MPN:
- 64254
- Cross Reference Number:
- 1110.5C-16 A 320 | W01-358-8050 | 1R14-039 | 8320
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $320.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Triple |

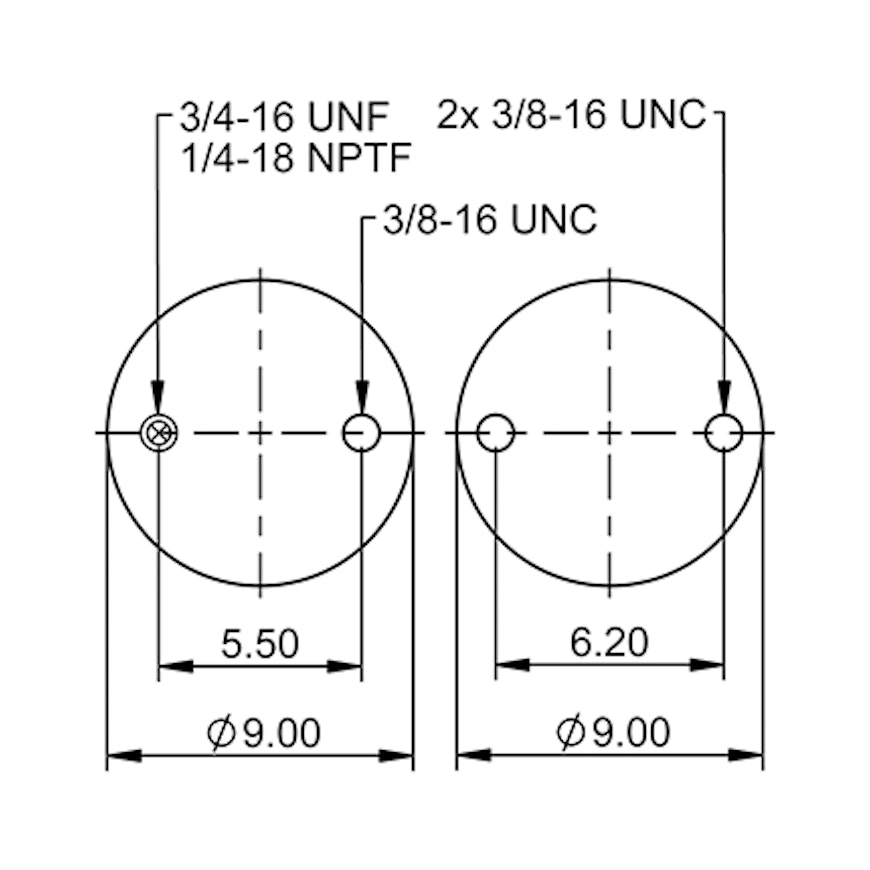

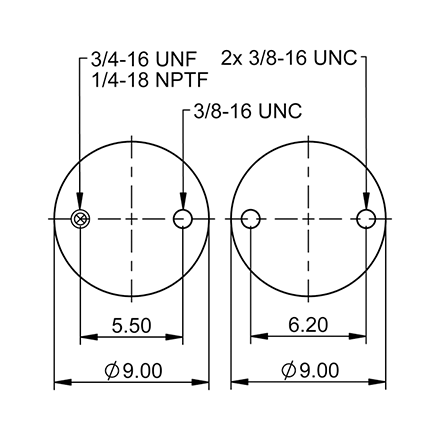

| Top Plate Diameter | 9.00 in |
| Top Mounting | Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC |
| Bottom Piston/Plate Diameter | 9.00 in |
| Bottom Mounting | Threaded Hole 3/8 in-16 UNC |
| Air Connection Configuration | Top - Single |

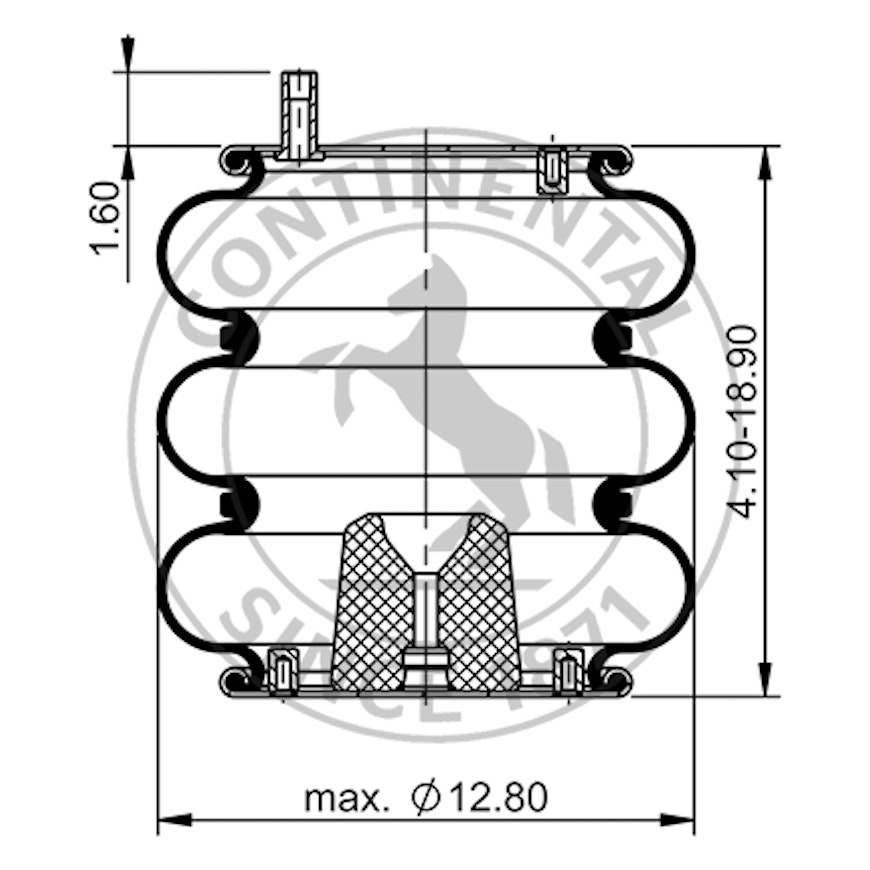

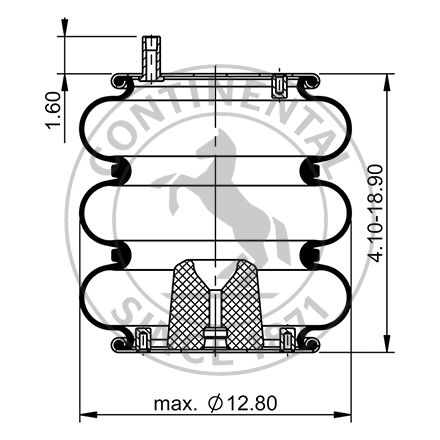

| Extended Height | 18.90 in |
| Compressed Height | 4.10 in |
| Max Working Diameter | 12.80 in |
The ContiTech Triple Convoluted Air Spring is the perfect suspension part for your vehicle. It is designed to isolate vibrations during road fluctuations, providing enhanced driver comfort. This air spring is made with the highest quality materials, offering superior heat dissipation and flexibility.
- Best heat dissipation and flexibility
- Features a factory like fit for hassle-free assembly
- Increase towing and hauling capabilities
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 66522/4554 applications
- 2-year/200,000 mile warranty
| Automann | 77130, SP3B22R8038, SP3B22R-8038 |
| ContiTech | AS8038 |
| Firestone | W013588038 W01-358-8038 |
| Four Seasons | 64068 |
| Goodyear | 3B12-415 |
| Grey Pneumatic | 8038 |
| Histeer Liftable Air Suspensions | 10313 |
| Stemco Manufacturing Co. | 3B12415 |
| The Penray Companies Inc. | 4554 |
| Truck Replacement Parts Inc. | AS80380 |
| Other | 66522 |
