ContiTech Air Spring 64636 ContiTech Air Spring 64636
ContiTech
- KTP #:
- 15800164
- MPN:
- 67600
- Cross Reference Number:
- 1010-15 S 962 | W01-358-8723 | 1R13-097
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $239.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

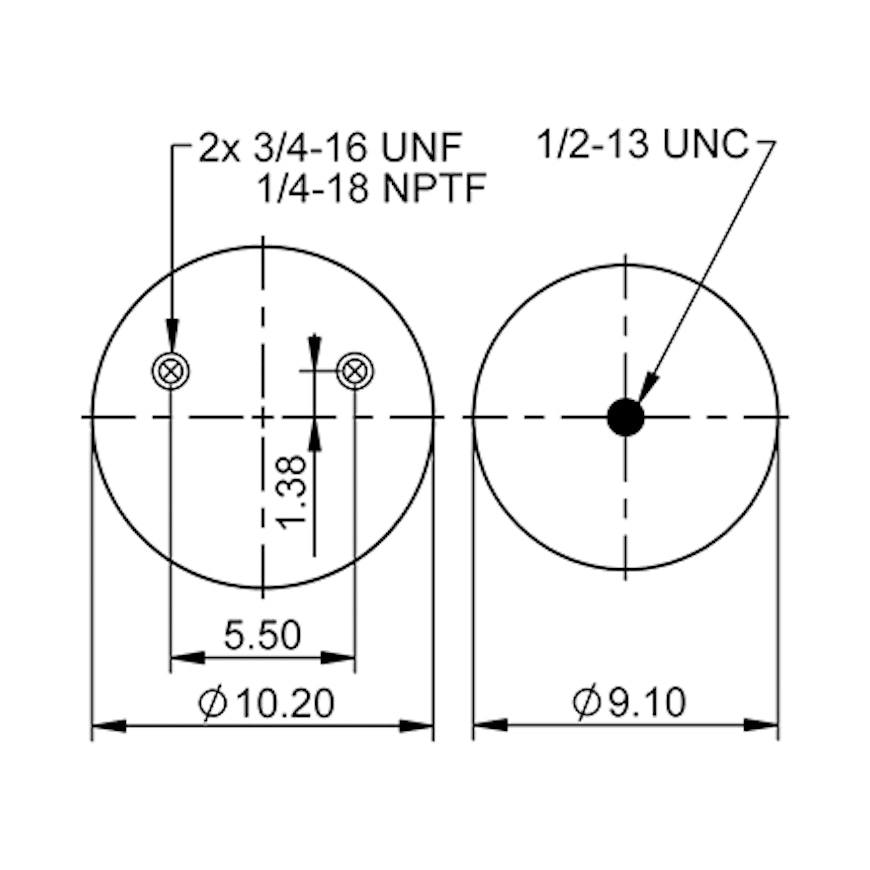

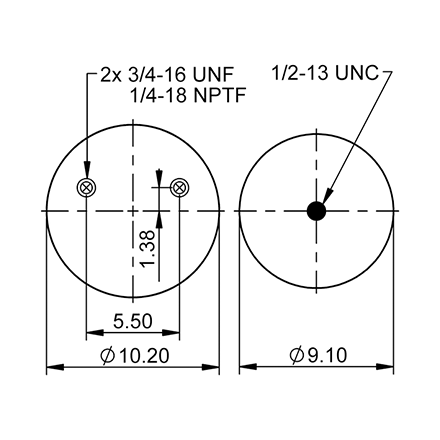

| Top Plate Diameter | 10.20 in |
| Top Mounting | Stud 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 9.10 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Dual |
| Extended Height | 20.50 in |
| Compressed Height | 8.50 in |
| Piston Height | 5.40 in |
| Max Working Diameter | 13.70 in |
The ContiTech Air Spring 64639/1R13-207/8753 boasts constant and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64639/9309758 applications
- 2-year/200,000 mile warranty
| Airsource | 8713 |
| AirTech Airsprings | 38713 KPP |
| Automann | 1DK25E-8713, AB1DK25E8713, FS8713, 1DK25E8713 |
| Contitech | 8708, 64636, 73565, AS PR10B16 8713, AS8713, CT64636 |
| Dayton Parts | 64237, 1R13263 |
| Firestone | W013588713 |
| Four Seasons | 66533 |
| Goodyear | 1R13176, 1R13-176 |
| HDValue | HDV8713 |
| Hendrickson | S21966, S22948, S-22948 |
| Mack Trucks, Inc. | 73889, AS RC10B16 8713 |
| Raybestos Brakes | 8533 |
| SKF | 68800 |
| Timken Co., The | 1966 |
| Truck Replacement Parts Inc. | AS87130 |
| Unknown | W01-358-8713, MAF8713B, 1R13-263 |
| Other | 3528713, 1R13140, TRAS8533, TR8713, HTC21966, FS8708, C22948, ASRC10B168713, ASPR10B168713, 38713KPP |
