ContiTech Air Spring 64260 ContiTech Air Spring 64260
ContiTech
- KTP #:
- 15800174
- MPN:
- 64274
- Cross Reference Number:
- 910-14 P 312 | W01-358-9069 | 1R12-069 | 8312
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $149.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}

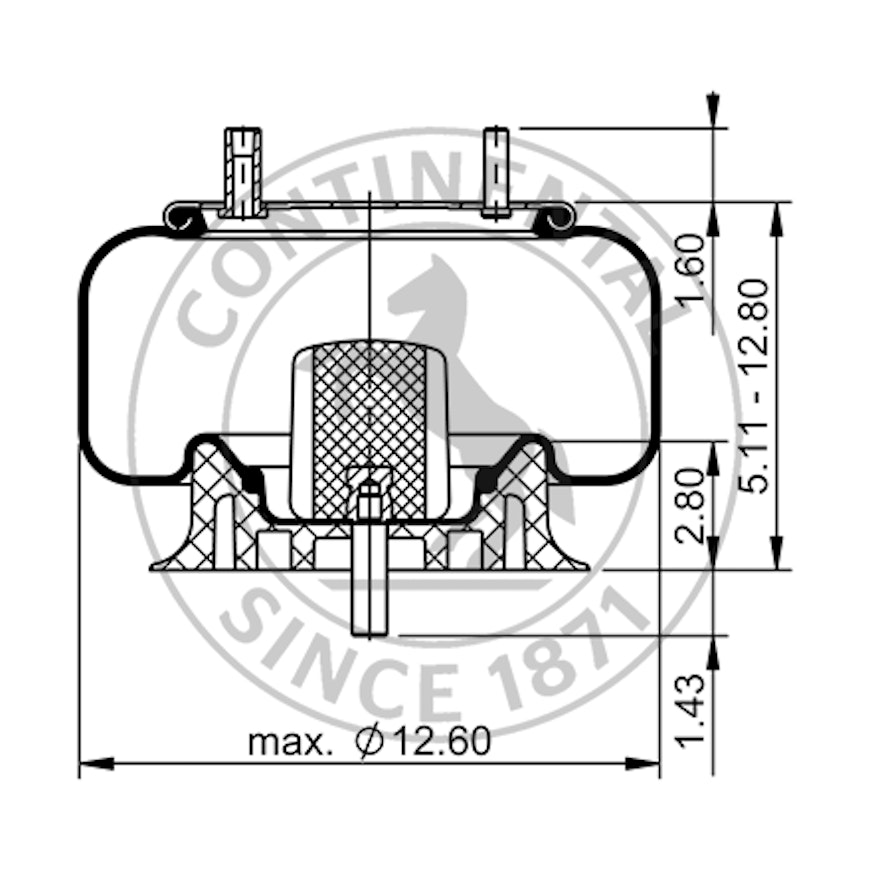

| VMRS | 016008001 |
| Air Spring Convolutions | Single |

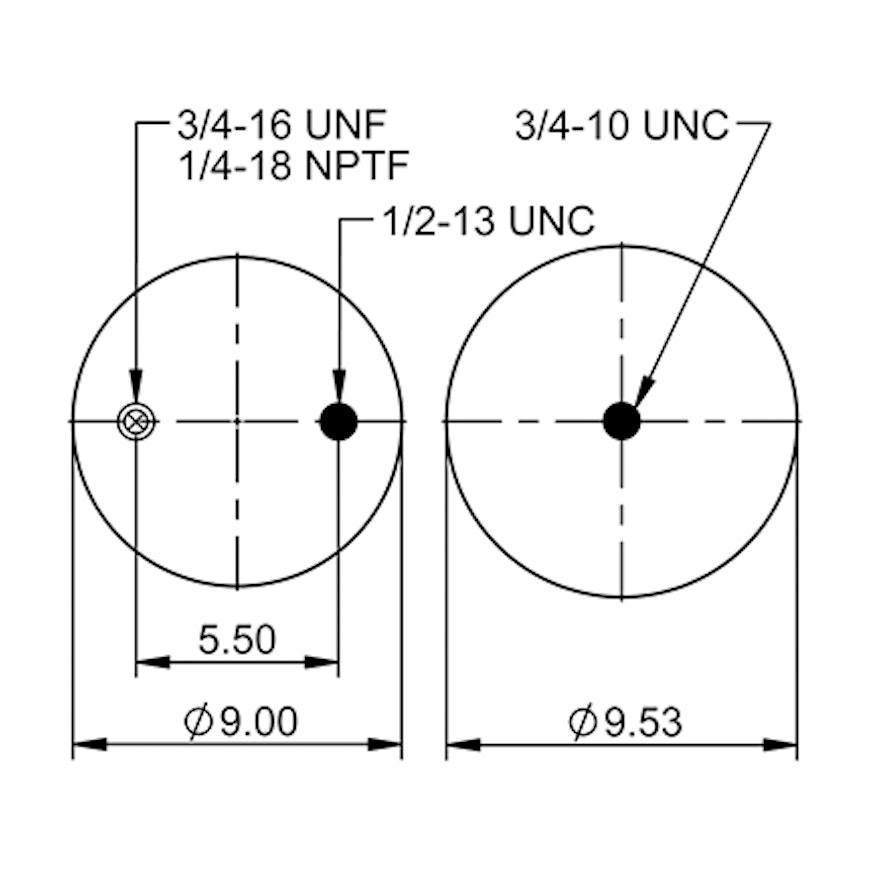

| Top Plate Diameter | 9.00 in |
| Top Mounting | Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC |
| Bottom Piston/Plate Diameter | 9.53 in |
| Bottom Mounting | Stud 3/4 in-10 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 12.90 in |
| Compressed Height | 5.10 in |
| Piston Height | 2.80 in |
| Max Working Diameter | 12.60 in |
The ContiTech Air Spring 64260/1R12-095/1R12-133/8311 keeps heavy duty truck bodies at a fixed distance from the road. This heavy duty air spring guarantees security and protection for any type of load. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 64260/9308623 applications
| AirTech Airsprings | 34150 K |
| Arvin | 200457, 21208939, 21216135 |
| Automann | 65015, AB1DK23F9039, 1DK23F-9039, 1DK23F9039 |
| Brake & Wheel Parts | M3511 |
| Chalmers Suspension | SC2033 |
| ContiTech | AS9039 |
| Dayton Parts | 3529039, 1R12095, 352-9039 |
| Fab Tek - Wester Unit | 101827 |
| Firestone | W013589039 |
| Flagg Suspension Parts | 63943 |
| Flxible Co. | 6336202, 6-336-202 |
| Goodyear | 1R12-095 |
| HDValue | HDV9039 |
| Hendrickson | S-11650, S-2064 |
| Holland Equipment, Ltd. | 90044199, 90557001, 90557011, 90557023, 90557085 |
| Hutch Suspension Systems | H942403, H-9424-01, H942401, H-9424-03 |
| Lisle Corp. | 64260 |
| Navistar | 554766C1 |
| Raydan Manufacturing | 21100010, 211-00-010 |
| Ridewell Corp | 1003589039C, 1013589039C |
| Sauer Products, Inc. | P50734, P50-734 |
| Taurus International, Inc. | AS5009039, AS500-9039 |
| TKL | 9039 |
| Truck Replacement Parts Inc. | 68858, AS90390 |
| Unknown | 8311, 551005, 1090218, 10132401, 300961250, 12TA12, 12TA-1-2, W01-358-9039, V 1 DK 23 F-9039, V 1 DK 23 F9039, MAF9039B, 300-961250 |
| Volvo Truck | 3130492, 85101153 |
| Watson & Chalin | AS0012, AS-0012 |
| Other | 8779039, V68311, TS8311, TRI8311, TRAS8311, TR8311, S9039, I8311, FS9039, EIEFS9039, EIE1R12095, EFS9039, E1R12095, 4529039L |
