ContiTech Air Spring 64254 ContiTech Air Spring 64254
ContiTech
- KTP #:
- 15800160
- MPN:
- 64421
- Cross Reference Number:
- 1110.5A-16 P 523 | W01-358-8091 | 1R14-171 | 8523
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $219.50
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

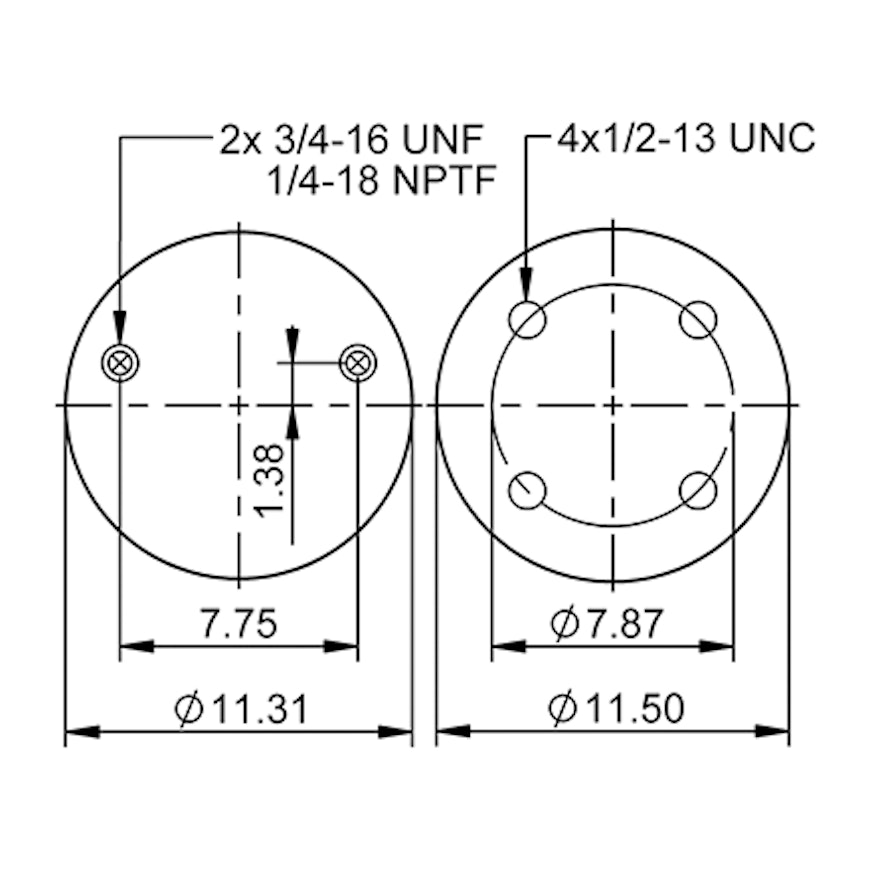

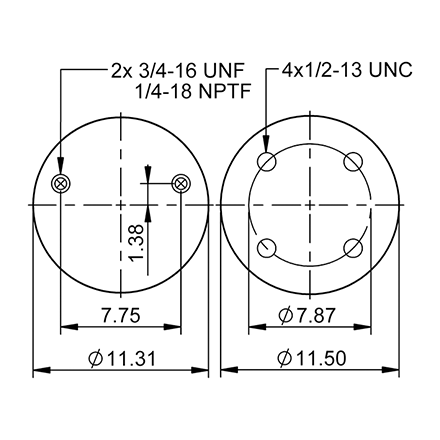

| Top Plate Diameter | 11.31 in |
| Top Mounting | Stud 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 11.50 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Dual |

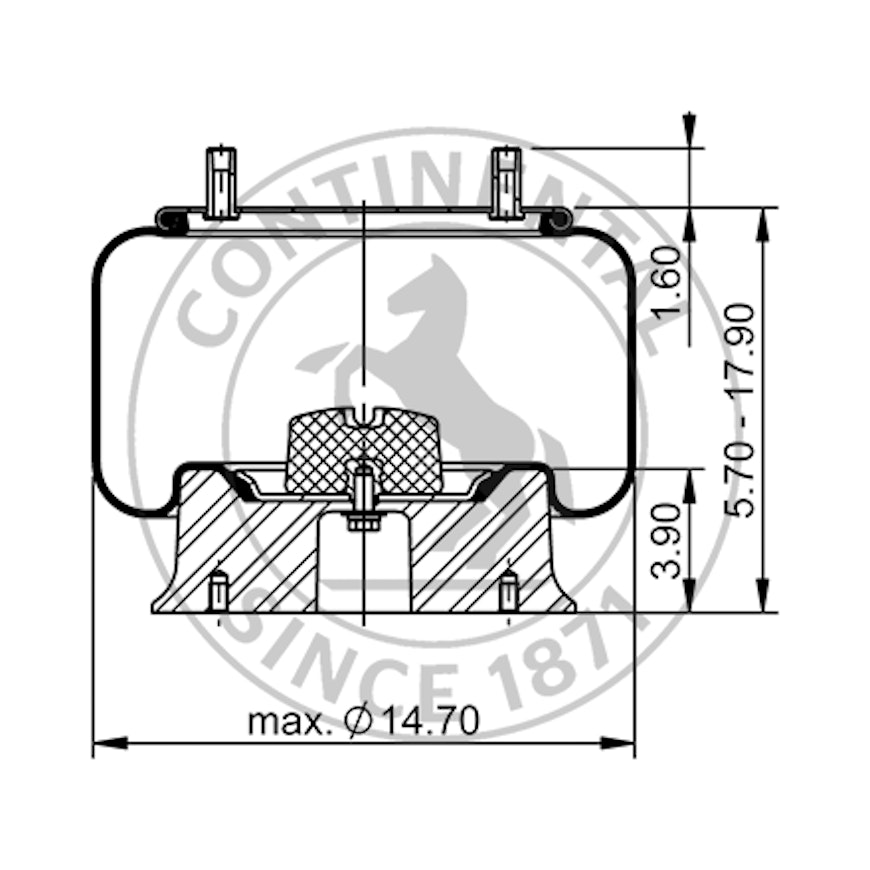

| Extended Height | 18.40 in |
| Compressed Height | 5.75 in |
| Piston Height | 3.90 in |
| Max Working Diameter | 14.70 in |
The ContiTech Rolling Lobe Air Spring 64254/1R14-039/8320 boasts the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. Rolling lobe air springs incorporate a piston which allows the flexible member to roll along the piston’s surface. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Rolling lobe style
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64254 applications
- 2-year/200,000 mile warranty
| Airtech Airsprings | 3805001K |
| AP Exhaust | 8050 |
| Automann | 65087, 1DK28A-8050, AB1DK28A8050, 1DK28A8050, AB1DK28A-8050 |
| Brake & Wheel Parts | M3510 |
| Chalmers Suspension | SC2052 |
| ContiTech | 64254, 73567, AS8050, CT64254, AS PR11LN16 8050 |
| Cushman | C0294 |
| Dayton Parts | 3528050 1R14039, 4528050L, 352-8050 |
| Euclid | FS8050 |
| Firestone | W01-358-8050, W013588050 |
| Flagg Suspension Parts | 63942 |
| Forecast | 8320 |
| Freightliner Trucks | CTH 64254 8058 |
| Goodyear | 1R14-244, 1R14244 |
| Holland Equipment, Ltd. | 57008050 |
| Mack Trucks, Inc. | AS RC11LN16 8050 |
| Navistar | 1R14241, 1685174C1, 1R14-241 |
| Power Products | 888050 |
| Reyco Industries, Inc. | 23631-01 |
| Spectra Premium Industries, Inc. | 73894 |
| Truck Replacement Parts Inc. | 68857, AS80500 |
| Unknown | 1R14-039, MAF8050B |
| Volvo Truck | 3130498 |
| Watson & Chalin | AS-0039, AS0039 |
| Other | 2363101, 8778050, 12514013, WA018050C, WA018050, V68320, TS8320, TRAS8320, TR8320, TR8050, S8050, EIEFS8050, EIE1R14039, EFS8050, E1R14039, CTH642548058, B12514013, ASRC11LN168050, ASPR11LN168050, 11105C16A320 |
