ContiTech Air Spring 65831 ContiTech Air Spring 65831
ContiTech
- KTP #:
- 15800117
- MPN:
- 64590
- Cross Reference Number:
- FD530-30 451 | W01-358-6801 | 2B14-365 | 4451
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $265.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

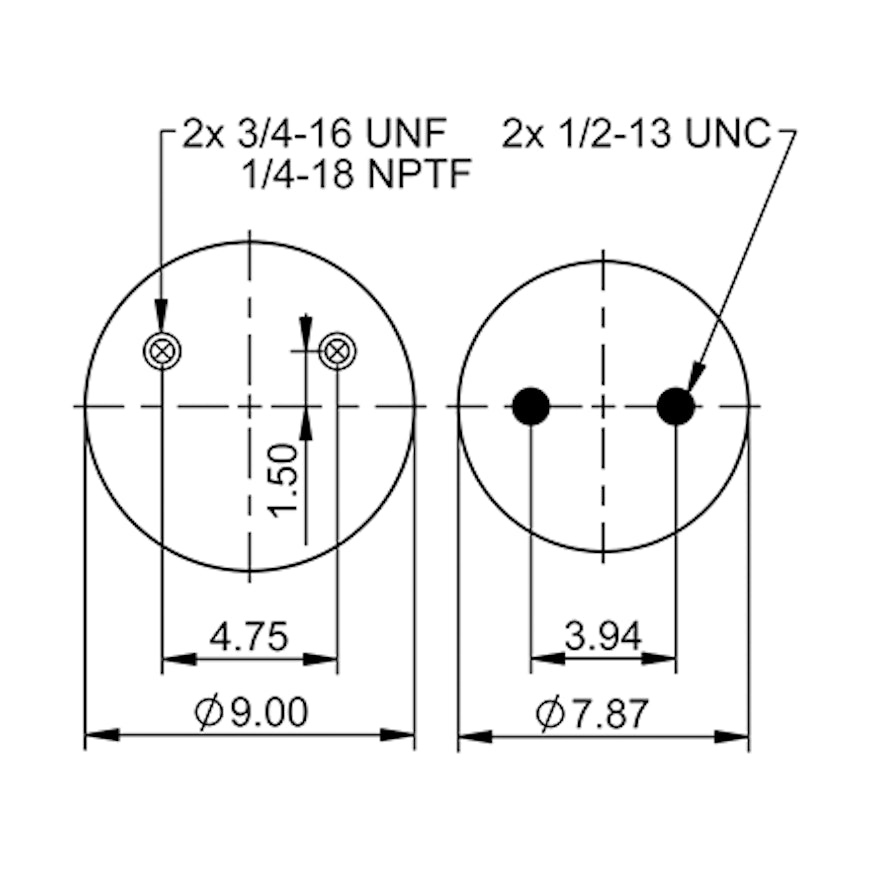

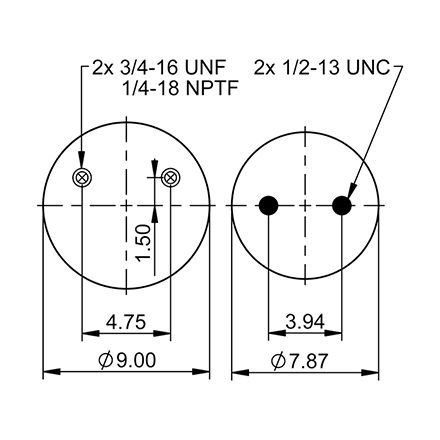

| Top Plate Diameter | 9.00 in |
| Top Mounting | Threaded Hole 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 7.87 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 24.20 in |
| Compressed Height | 8.40 in |
| Piston Height | 6.77 in |
| Max Working Diameter | 12.60 in |
The ContiTech Air Spring 75184/782 N P04 boasts the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 75184 applications
| Arvin | 21227742 FS25 |
| Automann | AB1DK23P6262, 1DK23P-6262, 1DK23P6262, AB1DK23P-6262 |
| ContiTech | 75184, AS6262 |
| Firestone | W01-358-6262, W013586262 |
| Flagg Suspension Parts | 65830 |
| Monroe Shocks | 72679 |
| PAI | 8831 |
| Truck Replacement Parts Inc. | 65832, AS62620 |
| Other | 6262, 21227742, 21227742FS25 |
